Serie 7 SWB

KEY FEATURES OF THE SERIE 7 SWB.

CAB

• Smart Cab Plus: stylish and functional design.
• Four-post design with +14% glass area.
• Electrohydraulic semi-active cab suspension.
• Spacious interior: more room in every direction for maximum comfort.
• Automotive-grade fit and finish with soft-touch materials.
• Ventilated air-suspension swivel seat with rotating headrest.
• Multifunction armrest with ergonomic joystick, integral with seat.
• Steering wheel and dashboard adjustable in tilt and depth.
• DSM Plus: 12-inch display and 12-inch dashboard with intuitive functions.
• Powerful Alpine 7” touch screen radio with DAB+, MP3, Bluetooth, microphone, USB.
• Android Auto and Apple CarPlay.
• Efficient climate control for uniform airflow distribution in all directions.
• Extra-large heated electric rearview mirrors with wide-angle view.
• 20 adjustable full LED work lights for outstanding visibility.

ENGINE

• Stage V 4- and 6-cylinder FPT N45 and N67 engines delivering up to 175 hp.
• Turbocharger, intercooler and electronic common rail injection system.
• Dual Power system for additional 10 hp power boost.
• High torque backup.
• Self-supporting engine for versatility and performance.
• HI-eSCR2 system for Stage V emissions compliance.
• 280-litre fuel tank; 46-litre AdBlue tank.
• Engine Brake function for more efficient braking.
• Coolers located in front of the radiator open fully from a single latch to allow easier and faster cleaning.

SMART CAB PLUS: LIKE IN THE OFFICE, BUT WITH A BETTER VIEW.

The Serie 7 SWB turns power into design and style into functionality: the sloping bonnet and the tapered sides are designed to improve visibility. The same attention to detail continues inside the Smart Cab Plus with a spacious and quiet working environment that maximises comfort and efficiency. Every detail in the Smart Cab Plus is designed with functionality in mind to deliver superior performance – from the high-grade fit and finish with durable, easy-clean soft-touch materials to the Alpine sound system with radio DAB+, four 200 W speakers delivering crystal-clear and powerful sound, useful apps and Bluetooth for hands-free phone calls and message reading. The Smart Cab Plus turns work into pleasure, making the driver's experience more productive and enjoyable.

Landini Cab Suspension, the suspended cab.

Landini Cab Suspension is an electrohydraulic semi-active cab suspension system designed to make work easier and less tiring. Offering three different comfort levels that can be selected via the DSM touch screen monitor, the system completely isolates the Smart Cab Plus from the tractor chassis, reducing vibrations and shocks caused by uneven terrain. A Panhard rod connects the cab suspensions, maximising tractor stability during field operation. The Landini Cab Suspension system is maintenance free.

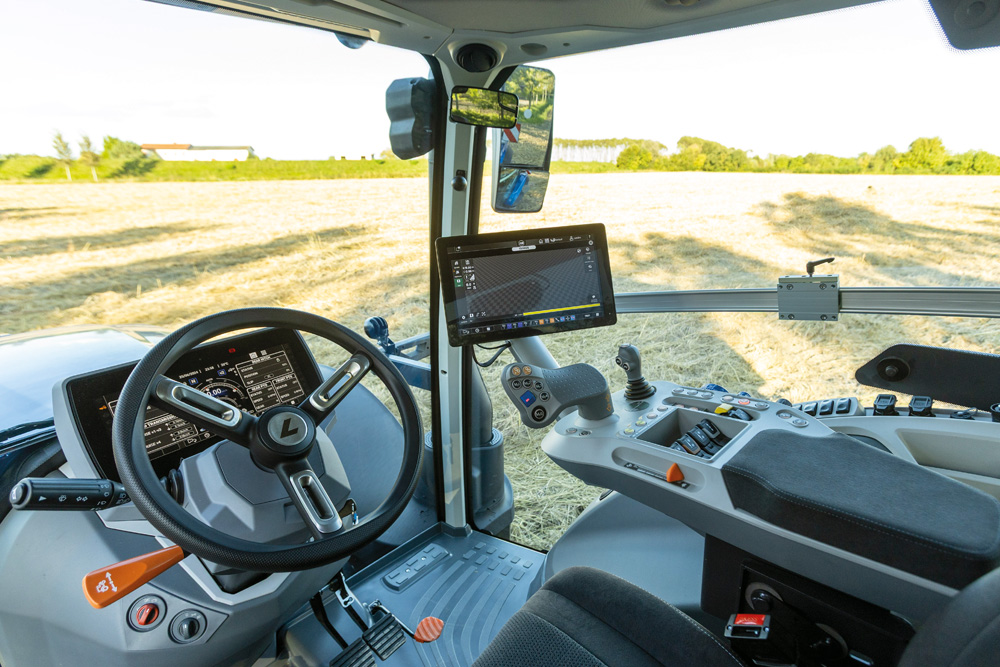

Smart Cab Plus: more visibility, more comfort, more control.

The Smart Cab Plus, with its wide steps, large doors, courtesy lights, delayed-off headlights and fold-away buddy seat, provides a safe and comfortable access to the driving position. The four-post cab design, with its 14 percent larger glazed area, 210-degree windscreen wiper and heated and tinted rear window, ensures excellent all-round visibility. The extra-large electric rearview mirrors are telescopic and heated. The cab interior offers more space in every direction, with 8 cm extra room in height and an additional 12 cm seat travel for enhanced sitting comfort. The platform is flat and the storage compartments are built in to keep the work area neat and tidy. The sound insulation reduces in-cab noise levels to 66 dBA, the lowest value in the category.

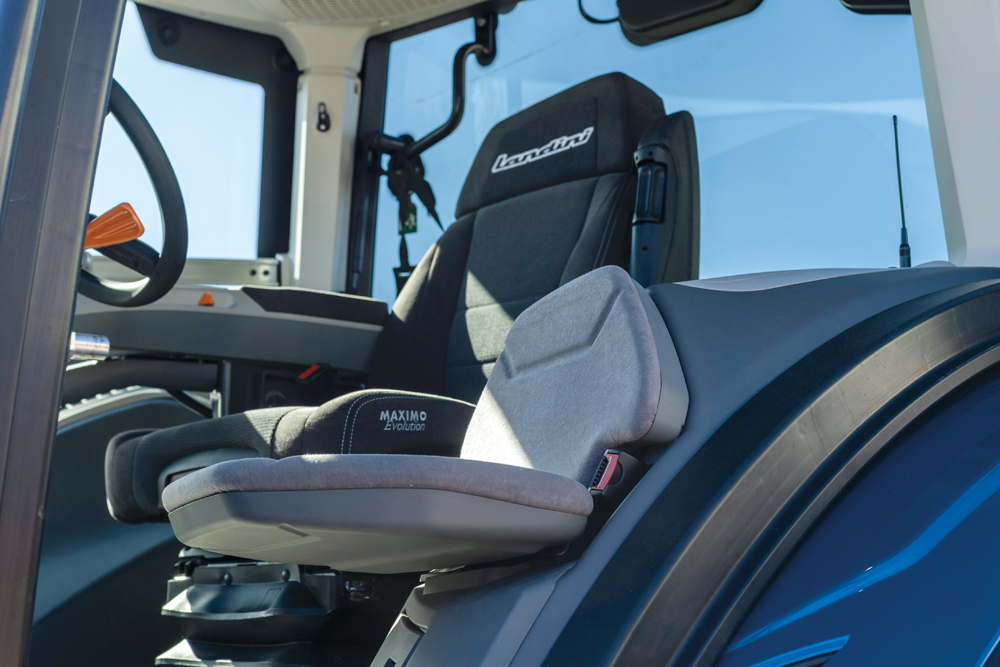

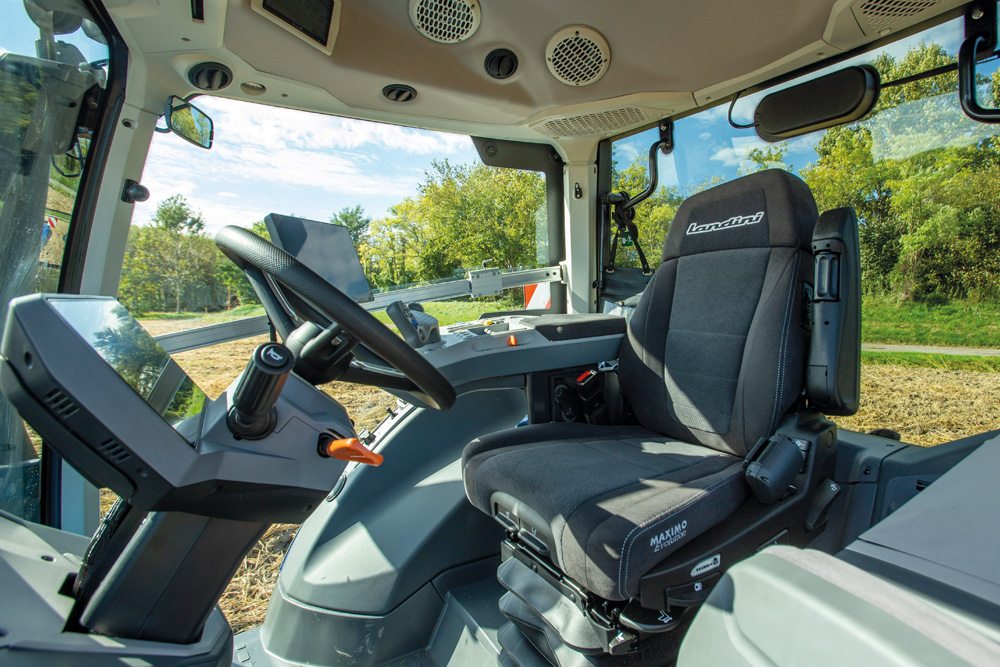

Comfort and efficiency make the difference.

The wide Alcantara upholstered swivel seat with electronic suspension is air conditioned for maximum comfort in all seasons. The headrest can be rotated to provide optimal neck support. The multifunction armrest, which moves with the seat, houses all the main controls in a logical manner, reflecting actual work sequences. Less frequently used controls are located on the side console. Several functions can be activated from the EasyPilot joystick. The steering wheel and dashboard can be adjusted in tilt and depth. The EazySteer system reduces steering wheel turns and, thanks to quick and precise steering control, makes headland turns and loader operations faster and less tiring.

Efficient climate control and innovative glazing.

With an airflow of 760 m³/h, the powerful automatic climate control system, integrated into the roof of the Smart Cab Plus, reaches the desired temperature in just a few minutes. Nine strategically positioned vents ensure uniform air distribution for enhanced comfort in all seasons. The system offers a number of advantages: the climate controls are conveniently located on the front panel; the system reduces airflow noise; the filters are highly efficient and easily accessible for easy cleaning. In addition, the Comfort Sky glazing, developed by Saint Gobain, reduces the cab temperature by up to 6°C, as compared to ordinary glasses.

Powerful full LED lighting system.

Twenty adjustable full LED work lights and four full LED driving lights provide powerful, bright and even daylight-like illumination for maximum visibility during night or low-light conditions. Two long-range lights at the rear of the cab illuminate the ends of the implements. Additional long-range lights on the bonnet light up the work area. The MyLights function allows the operator to configure two different lighting setups for optimum visibility during multi-machine operations. With 40,000 lumens of light intensity, the Serie 7 SWB turns darkness into daylight, making night work easier and more efficient.

V-SHIFT, THE ONLY PEDAL IS THAT OF EFFICIENCY.

V-Shift is the continuously variable transmission that simplifies your work: you only need to select the direction of travel and step on the gas pedal. The V-Shift transmission is pure innovation: with its four speed ranges and its four planetary gear sets with wet clutches, this transmission delivers superior responsiveness and best-in-class performance. The V-Shift transmission improves comfort, reduces fuel consumption and, most importantly, increases productivity: thanks to its four-stage technology, this transmission provides a smooth ride at speeds ranging from 40 m/h to 50 km/h, ensuring maximum efficiency in every application. With our V-Shift continuously variable transmission, you will have more comfort on board and more efficiency in the field.

V-Shift transmission with four speed ranges for unmatched versatility.

The V-Shift transmission represents the future of farming. Featuring four speed ranges instead of the conventional two, this innovative technology offers real benefits to farmers looking for efficiency and versatility in every application. The choice of the ideal speed range for the job at hand improves working accuracy and efficiency:

• Range 1 - Creeper: 0 – 3 km/h
• Range 2 - Field 1: 0 – 12 km/h
• Range 3 - Field 2: 0 – 21 km/h
• Range 4 - Transport: 0 – 40 or 50 km/h

These preset speed ranges can be customised by the operator to ensure maximum efficiency both in the field and on the road.

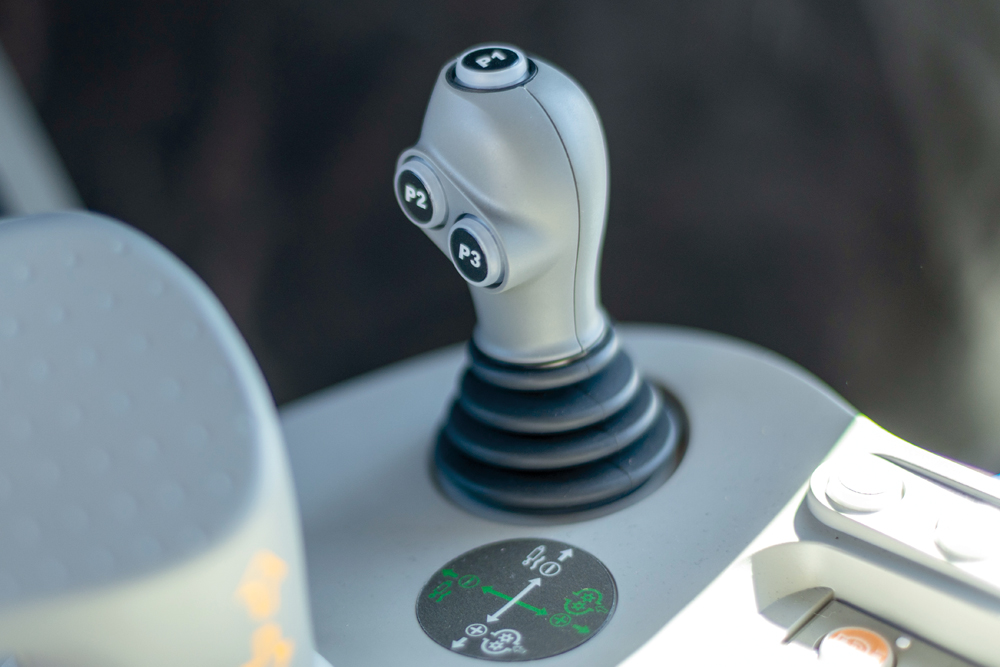

EasyPilot joystick: ergonomics and functionality.

The intuitive EasyPilot multifunction joystick allows the operator to drive the Serie 7 SWB, control the transmission and operate the implements. The joystick features five push buttons that can be configured by the operator via the MyFunctions menu and enable the activation of five different functions, including engine speed cruise control, headland management and forward/reverse shifting without using the steering-column shuttle lever. All controls are clearly displayed on the dashboard or on the display.

Electrohydraulic Reverse Power Shuttle.

The Reverse Power Shuttle can be operated via the shuttle control lever adjacent to the steering wheel or the multifunction joystick, allowing the operator to automatically shift from forward to reverse without using the clutch pedal. The shuttle response is electronically modulated and adjustable by the operator to suit different tasks and conditions.

Smart Power Zero braking system for total safety.

The Smart Power Zero braking system, supplied as standard on the Serie 7 SWB, holds the tractor stationary on any slope. This technology interfaces with the trailer's braking system for enhanced safety. The Smart Power Zero system also improves operating control, making implement attachment and detachment easier and faster.

TRACTION THAT NEVER QUITS.

Designed to tackle rough terrain, steep inclines and tough conditions, the Serie 7 SWB puts more horsepower to the ground than any other tractor in its power class. This outstanding tractive capability ensures excellent grip and stability, both in the field and on the road. In addition, thanks to the tractor’s lightweight and optimal weight distribution, the Serie 7 SWB reduces the amount of soil compaction, thereby preserving the structure and fertility of the soil.

Front axle with independent suspension (IFS).

The electronically controlled front axle with independent suspension and two centrally hinged systems provides more stability and better grip than conventional front axles. The IFS system improves traction and manoeuvrability in the field and increases speed, safety and comfort during transport operations. In addition, the front axle ride height can be adjusted making the Serie 7 SWB ideal for applications like ploughing. The front axle is equipped with full differential lock and electrohydraulic four-wheel drive with automatic engagement. Both front and rear axles feature wet multidisc brakes for maximum safety in any condition.

Large diameter tyres: high traction and low soil compaction.

Thanks to its 1.82 m diameter rear tyres, the Serie 7 SWB puts all of its power to the ground efficiently. The tyre's wide footprint reduces ground pressure, preserving the soil structure. Our range of tyres is designed to meet every need; among them, the VF 710/60 R38 tyres with V-Flecto technology are specifically designed to maximise traction and reduce soil compaction, while maintaining excellent stability during work.

Landini ballasting system: all the weight in the right place.

Landini offers a complete range of quick-attach weights that allow the Serie 7 SWB to put all of its 175 hp of power to the ground. Designed with versatility in mind, the Landini ballasting system includes rear axle weights from 170 kg to 540 kg and an 800 kg monobloc weight for the front hitch.

Engine brake: total control, maximum safety.

The Serie 7 SWB features an efficient engine brake that maximises the braking performance allowing the tractor to slow down in a controlled manner. Less brake use will reduce brake wear and maintenance costs. On hilly or rough terrain, the engine brake provides better control for maximum safety in any situation.

Automatic Grease System for ultimate efficiency.

The Automatic Grease System from Landini makes the maintenance of the Serie 7 SWB easier, faster and more precise. Every two hours, the system automatically lubricates all grease points to keep all mechanical components in good working order. The system can also be activated manually, if needed.

Customisable remote valves.

The hydraulic system of the Serie 7 SWB is fully customisable to suit your needs. The tractor can be equipped with up to eight remote valves that can be controlled via the EasyPilot joystick or the DSM display. The system allows the user to customise flow rates, operation modes and control settings. Three fingertip controls on the multifunction armrest enable the operator to control three remote valves, while a fingertip selector operates the flow divider. In addition, a mini-joystick can control up to six remotes that can be programmed via the DSM display to operate the front hitch, the front loader and the ISOBUS-compatible implements.

Automatic rear and front PTOs for top performance.

The rear PTO of the Serie 7 SWB is designed to deliver high performance even with heavy, power-demanding implements. The driveline design provides modulated PTO engagement, protecting implements from damage. The rear PTO offers four speeds: 540, 540Eco, 1000 and 1000Eco rpm. External PTO, hitch and remote valve controls are located on the rear fenders, making attaching and detaching implements from the ground easier and faster. When the PTO is connected, the Dual Power system provides an additional 10 hp, allowing the engine to maintain a constant power as the load varies. The Auto PTO function will automatically engage and disengage the rear PTO during headland turns. The front PTO of the Serie 7 SWB provides a speed of 1000Eco rpm.

Electronically controlled front and rear hitches.

The electronic rear hitch is equipped with a three-point linkage Category 3 and lower link draft sensing for maximum accuracy of operation and provides a lift capacity of 9300 kg. The EasyPilot joystick allows a precise and intuitive control of the implement. The electronically controlled front hitch is integrated into the tractor frame and offers a lift capacity of 3500 kg, allowing large, heavy implements to be handled with ease. The front hitch and front PTO can be used in combination with rear-mounted implements to save time, improve fuel economy and increase productivity.

More comfort with the hitch damping system.

During headland turns and transport operations, heavy implements generate shock loads. Both the front and rear hitch of the Serie 7 SWB feature a damping system with two nitrogen-charged accumulators which absorbs shock loads, thereby reducing pitching motions when travelling with raised implements. This system reduces the strain on the tractor’s structure, improving ride comfort.

QUICK MAINTENANCE TO GET YOU UP AND RUNNING IN NO TIME.

Daily maintenance must be quick and intuitive, otherwise il will be neglected. The Serie 7 SWB features a number of solutions designed to make maintenance fast and efficient:

1. The fully opening bonnet allows quick, tool-free maintenance.
2. Oil top-up can be done without opening the bonnet since the oil filler cap with dipstick is located in the lower part of the engine.
3. The engine air filter is easy to clean and replace.
4. The coolers located in front of the radiator open fully from a single latch to allow easy, fast and accurate cleaning.
5. The HI-eSCR2 aftertreatment system is maintenance-free, which reduces operating costs and unplanned downtime.
6.  The fuel and AdBlue tanks have different coloured caps and are conveniently located for easy refuelling.
7. The oil level in the transmission is easy to check through the transparent oil filler cap with level gauge located on the rear of the tractor.
8. The windscreen wiper fluid reservoir is located on the rear of the cab.
9. The cab air filter is conveniently located to allow quick maintenance.
10. The Automatic Grease System automatically delivers oil to all lubrication points, resulting in significant time savings.
11. The My Landini App will alert you about the checks and spare parts needed to always keep your Serie 7 SWB in good working order.
