Serie 7 Robo-Six

KEY FEATURES OF THE SERIE 7 ROBO-SIX.

CAB

• Smart Cab Plus: stylish and functional design.
• Four-post design with +14% glass area.
• Electrohydraulic semi-active cab suspension.
• Spacious interior: more room in every direction for maximum comfort.
• Automotive-grade fit and finish with soft-touch materials.
• Ventilated air-suspension swivel seat with adjustable headrest.
• Multifunction armrest with ergonomic joystick, integral with seat.
• Steering wheel and dashboard adjustable in tilt and depth.
• DSM Plus: 12-inch display and 12-inch dashboard with intuitive functions.
• Powerful Alpine 7” touch screen radio with DAB+, MP3, Bluetooth, microphone, USB.
• Android Auto and Apple CarPlay.
• Efficient climate control for uniform airflow distribution in all directions.
• Extra-large heated electric rearview mirrors with wide-angle view.
• 20 adjustable full LED work lights for outstanding visibility.

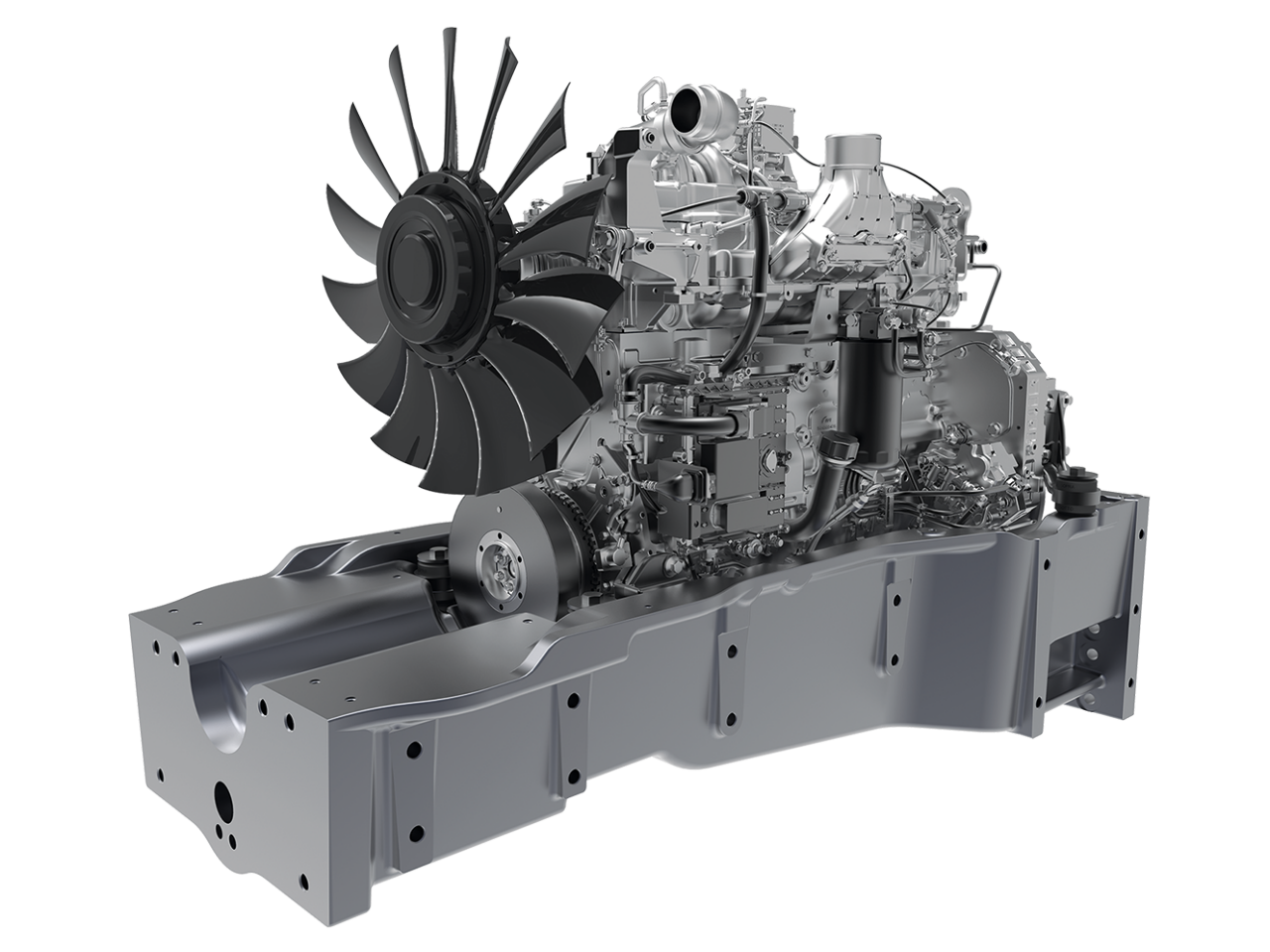

ENGINE

• Turbocharger with intercooler and common rail injection system.
• Up to 225 hp of sheer power.
• High torque backup: up to 41%.
• Engine located within a rugged chassis for improved traction and reduced vibrations.
• HI-eSCR2 technology for Stage V emissions compliance.
• 350-litre fuel tank; 52-litre AdBlue tank.
• Viscotronic fan for better cooling efficiency, improved fuel economy and lower noise levels.
• Coolers located in front of the radiator open fully from a single latch for easier and faster cleaning.
• Best in Class system: scheduled maintenance every 1000 hours.

SMART CAB PLUS: LIKE IN THE OFFICE, BUT WITH A BETTER VIEW.

The Serie 7 Robo-Six turns power into design and style into functionality: the sloping bonnet and the tapered sides are designed to improve visibility. The same attention to detail continues inside the Smart Cab Plus with a spacious and quiet working environment that maximises comfort and efficiency. Every detail in the Smart Cab Plus is designed with functionality in mind to deliver superior performance – from the high-grade fit and finish with durable, easy-clean soft-touch materials to the Alpine sound system with radio DAB+, four 200 W speakers delivering crystal-clear and powerful sound, useful apps and Bluetooth for hands-free phone calls and message reading. The Smart Cab Plus turns work into pleasure, making the driver's experience more productive and enjoyable.

Landini Cab Suspension, the suspended cab.

Landini Cab Suspension is an electrohydraulic semi-active cab suspension system designed to make work easier and less tiring. Offering three different comfort levels that can be selected via the DSM touch screen monitor, the system completely isolates the Smart Cab Plus from the tractor chassis, reducing vibrations and shocks caused by uneven terrain. A Panhard rod connects the cab suspensions, maximising tractor stability during field operation. The Landini Cab Suspension system is maintenance free.

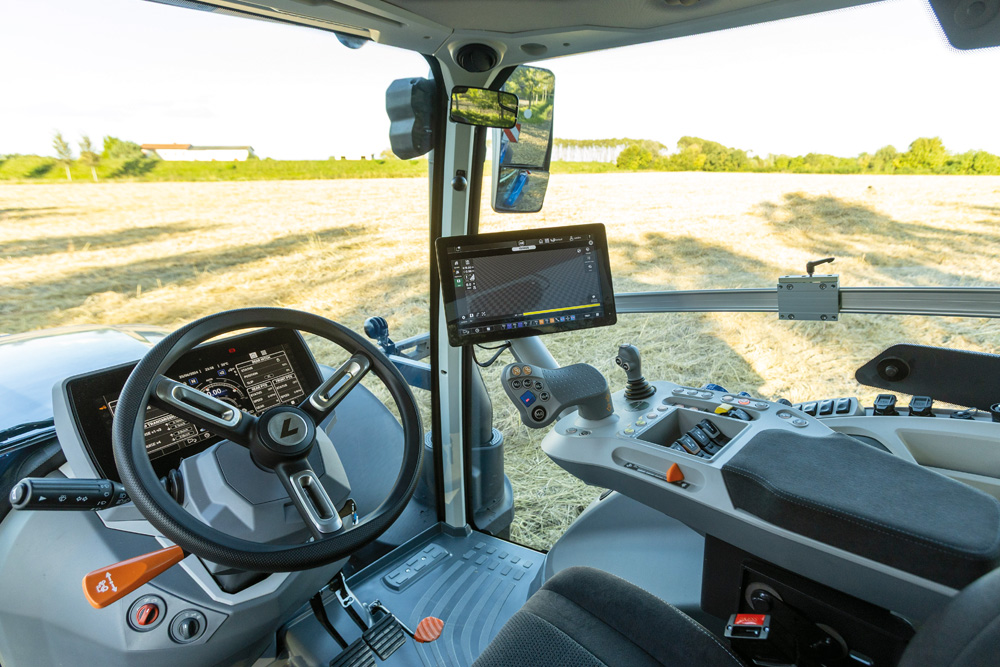

Smart Cab Plus: more visibility, more comfort, more control.

The Smart Cab Plus, with its wide steps, large doors, courtesy lights, delayed-off headlights and fold-away buddy seat, provides a safe and comfortable access to the driving position. The four-post cab design, with its 14 percent larger glazed area, 210-degree windscreen wiper and heated and tinted rear window, ensures excellent all-round visibility. The extra-large electric rearview mirrors are telescopic and heated. The cab interior offers more space in every direction, with 8 cm extra room in height and an additional 12 cm seat travel for enhanced sitting comfort. The platform is flat and the storage compartments are built in to keep the work area neat and tidy. The sound insulation reduces in-cab noise levels to 66 dBA, the lowest value in the category.

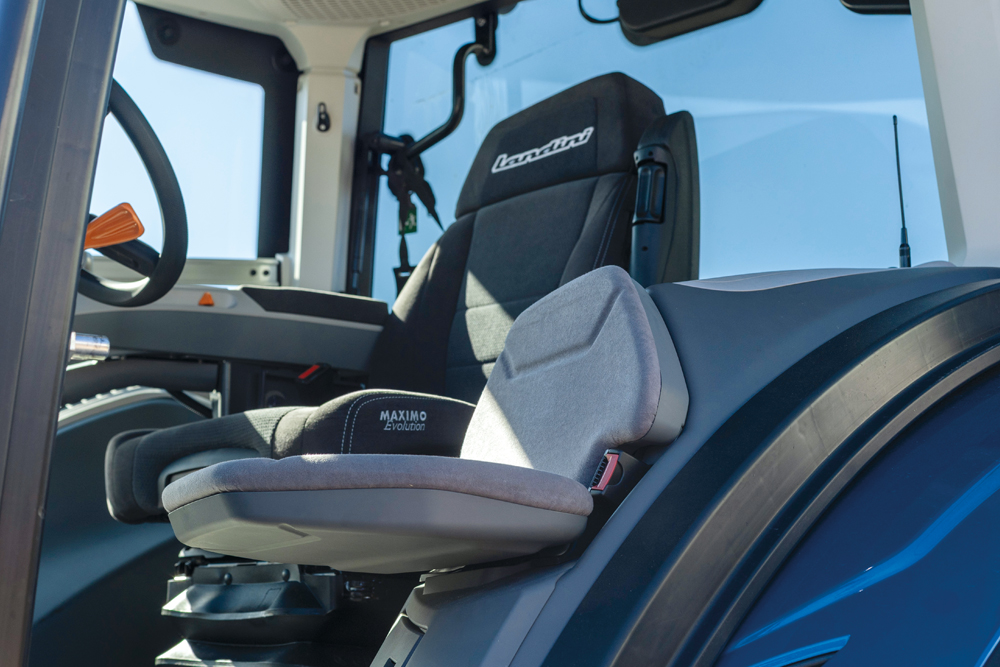

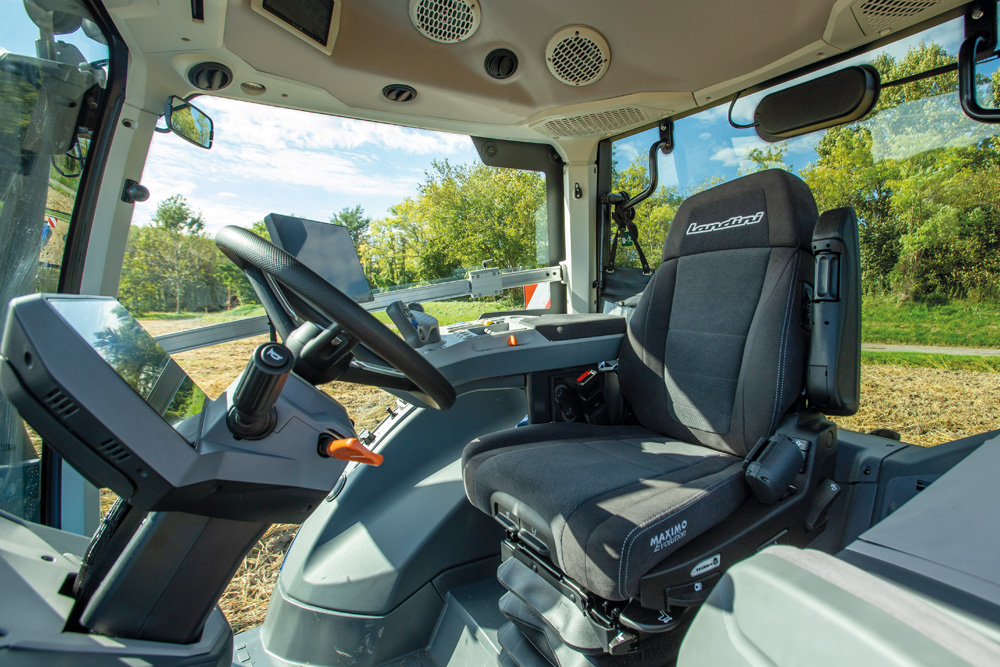

Comfort and efficiency make the difference.

The wide Alcantara upholstered swivel seat with electronic suspension is air conditioned for maximum comfort in all seasons. The headrest can be rotated to provide optimal neck support. The multifunction armrest, which moves with the seat, houses all the main controls in a logical manner, reflecting actual work sequences. Less frequently used controls are located on the side console. Several functions can be activated from the EasyPilot joystick. The steering wheel and dashboard can be adjusted in tilt and depth. The EazySteer system reduces steering wheel turns and, thanks to quick and precise steering control, makes headland turns and loader operations faster and less tiring.

Efficient climate control and innovative glazing.

With an airflow of 760 m³/h, the powerful automatic climate control system, integrated into the roof of the Smart Cab Plus, reaches the desired temperature in just a few minutes. Nine strategically positioned vents ensure uniform air distribution for enhanced comfort in all seasons. The system offers a number of advantages: the climate controls are conveniently located on the front panel; the system reduces airflow noise; the filters are highly efficient and easily accessible for easy cleaning. In addition, the Comfort Sky glazing, developed by Saint Gobain, reduces the cab temperature by up to 6°C, as compared to ordinary glasses.

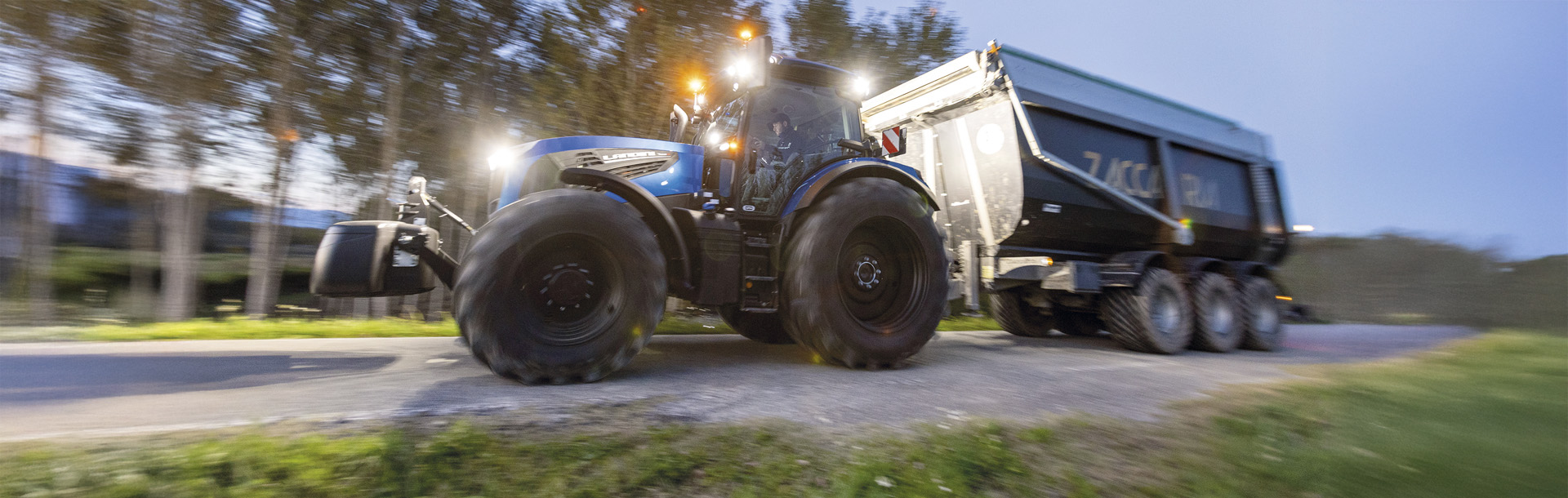

Powerful full LED lighting system.

Twenty adjustable full LED work lights and four full LED driving lights provide powerful, bright and even daylight-like illumination for maximum visibility during night or low-light conditions. Two long-range lights at the rear of the cab illuminate the ends of the implements. Additional long-range lights on the bonnet light up the work area. The MyLights function allows the operator to configure two different lighting setups for optimum visibility during multi-machine operations. With 40,000 lumens of light intensity, the Serie 7 Robo-Six turns darkness into daylight, making night work easier and more efficient.

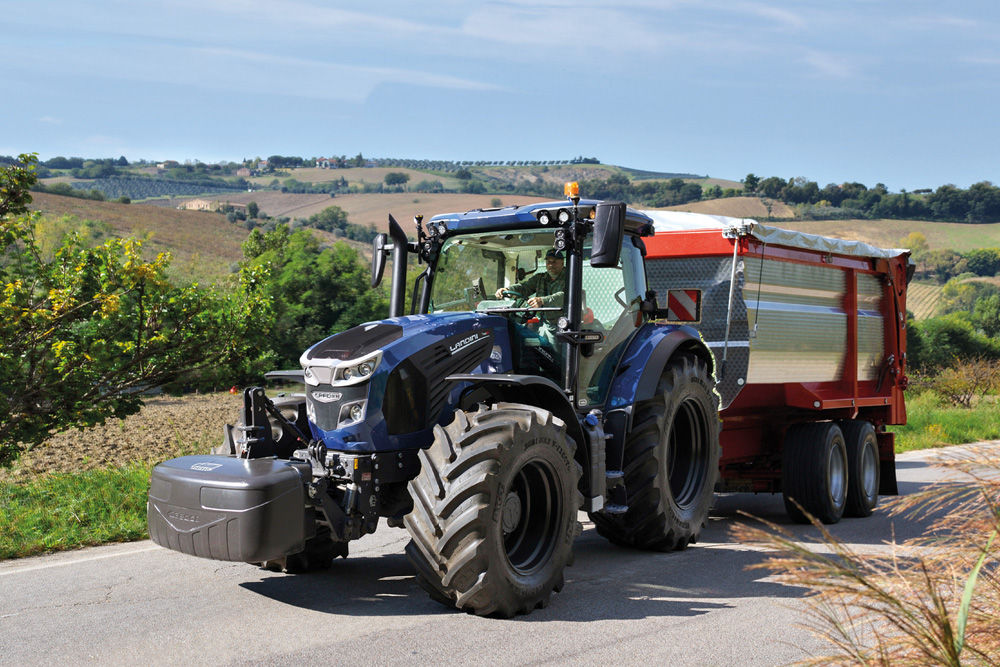

POWER IN THE FIELD, COMFORT ON THE ROAD.

The innovative Robo-Six transmission improves performance and versatility both in the field and on the road. The Robo-Six with robotised range shifting and electrohydraulic steering-column power shuttle features six on-the-go PowerShift speeds and five ranges providing 30F/15R gears, which can be increased to 54F/27R with a creeper unit that delivers a minimum speed of 400 m/h. The top speed of 50 km/h is achieved at low engine rpm, resulting in better fuel economy. In addition, during transport operations, the Oil Cut Off automatic lubrication system improves transmission efficiency and fuel economy, while reducing power loss.

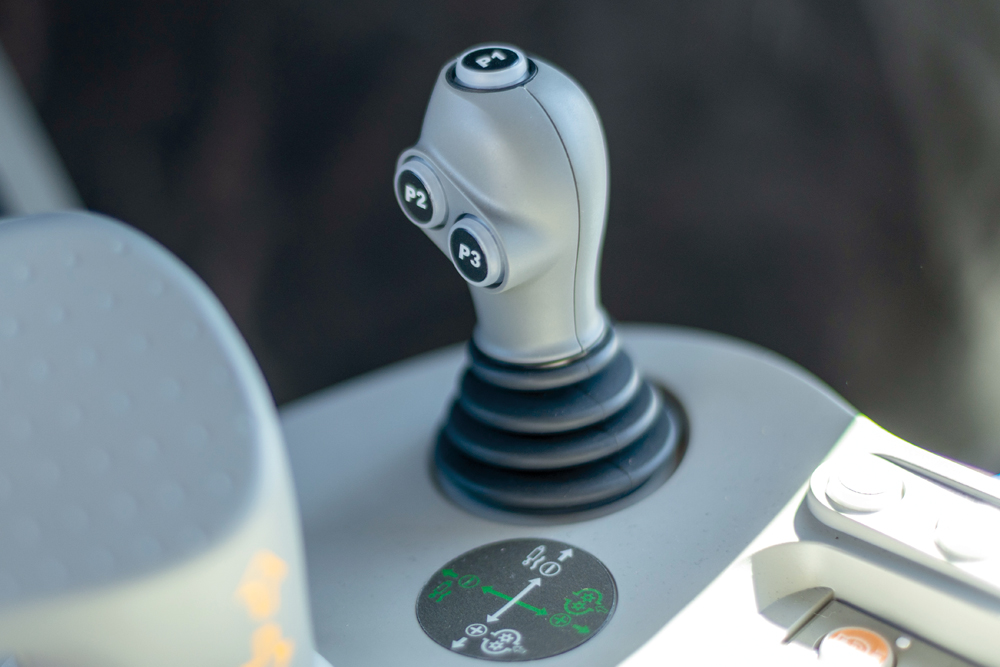

EasyPilot joystick: performance at your fingertips.

The EasyPilot joystick provides intuitive control of the Robo-Six transmission, allowing the operator to shift through all gears and ranges without using the clutch pedal. The EasyPilot joystick also makes driving the tractor and operating the implements easier and more comfortable. Five configurable buttons on the EasyPilot allow the driver to control a number of functions, including the APS Auto PowerShift, differential lock, four-wheel drive engagement, de-clutch button, PTO, engine speed memory, remote valves and headland management. All functions are clearly displayed on the DSM monitor or on the digital console.

Smart APS Auto PowerShift automatic transmission.

While driving, the Smart APS Auto PowerShift function automatically selects the right gear in each range, based on engine load, travel speed and engine rpm. The Smart APS system provides the best performance-to-consumption ratio, while improving comfort and safety.

Stop & Action system: more comfort and safety.

The Stop & Action system allows the operator to control the clutch using the brake pedal. This provides a smooth and progressive driving experience, comparable to that of a CVT transmission. The Stop & Action system reduces operator fatigue in applications requiring frequent stops and restarts. In addition, the software determines when to disengage the clutch based on the tractor's load, further improving driving safety.

Reverse Power Shuttle for fast and easy direction changes.

The Reverse Power Shuttle allows the operator to automatically switch from forward to reverse without clutching, by simply using the shuttle control lever adjacent to the steering wheel or the joystick. The shuttle response is electronically modulated and adjustable by the operator to suit different tasks and conditions.

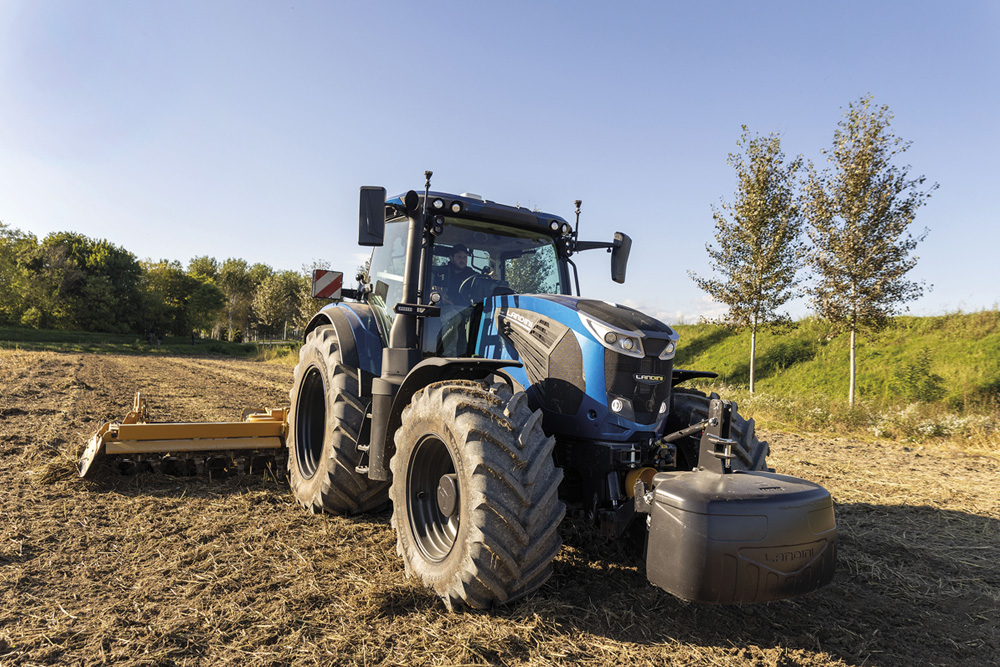

A TRACTION THAT KNOWS NO OBSTACLES.

The Serie 7 Robo-Six is designed to tackle rough terrain, steep inclines and demanding applications with ease. Thanks to its chassis-mounted engine, which moves the tractor's centre of gravity forward, and its rugged front axle with independent suspension, the Serie 7 Robo-Six puts all of its 225 hp to the ground, more than any other tractor in its class. The tractor's optimal weight distribution improves traction while reducing soil compaction. The Serie 7 Robo-Six ensures excellent grip and stability for outstanding performance both in the field and on the road.

Front axle with independent suspension (IFS).

The electronically controlled front axle with independent suspension and two centrally hinged systems provides more stability and better grip than conventional front axles. The IFS system improves traction and manoeuvrability in the field and increases speed, safety and comfort during transport operations. In addition, the front axle ride height can be adjusted making the Serie 7 Robo-Six ideal for applications like ploughing. The front axle is equipped with full differential lock and electrohydraulic four-wheel drive with automatic engagement. Both front and rear axles feature wet multidisc brakes for maximum safety in any condition.

Large diameter tyres: high traction and low soil compaction.

With its 1.85 m diameter rear tyres, the Serie 7 Robo-Six puts all of its power to the ground. In addition, the tyre's wide footprint reduces ground pressure, preserving the soil structure. Our range of tyres is designed to meet every need; among them, the VF 710/60 R42 V tyres with V-Flecto technology are specifically designed to maximise traction and reduce soil compaction, while maintaining excellent stability during work.

EazyGrip reduces soil compaction.

A correct tyre pressure preserves the soil structure maintaining fertility over time. The EazyGrip system allows the operator to adjust tyre pressure for field work and road use via the DSM touch screen monitor and the ISOBUS system. This technology improves traction while minimising soil compaction. It also reduces fuel consumption and tyre wear. EazyGrip maximises the tractor performance by using I-Flex low-pressure tyres that operate at pressures of up to 1 bar and V-Flex tyres with pressures below 1 bar.

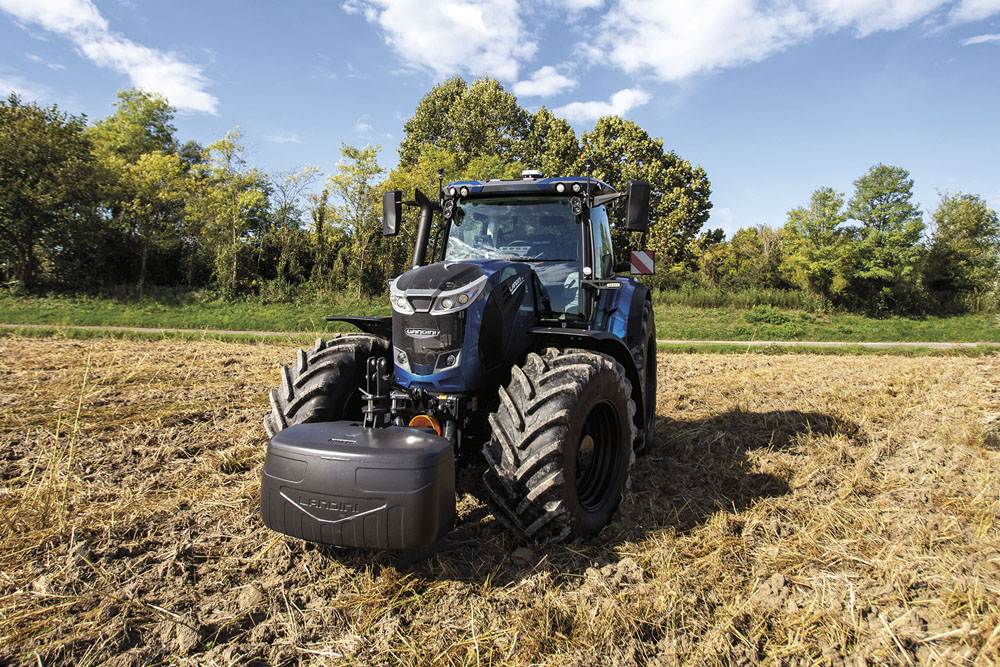

Landini ballasting system: all the weight in the right place.

Landini offers a complete range of quick-attach weights that allow the Serie 7 Robo-Six to put all of its 225 hp of power to the ground. Designed with versatility in mind, the Landini ballasting system includes rear axle weights from 170 kg to 540 kg and a 1400 kg monobloc weight for the front hitch.

Engine brake: total control, maximum safety.

The Serie 7 Robo-Six features an efficient engine brake that maximises the braking performance allowing the tractor to slow down in a controlled manner. Reduced brake use will minimise brake wear, thereby reducing maintenance costs. On hilly or rough terrain, the engine brake provides better control for maximum safety in any situation.

Automatic Grease System for ultimate efficiency.

The Automatic Grease System from Landini makes the maintenance of the Serie 7 Robo-Six easier, faster and more precise. Every two hours, the system automatically lubricates all grease points to keep all mechanical components in good working order. The system can also be activated manually, if needed.

Customisable remote valves.

The hydraulic system of the Serie 7 Robo-Six is fully customisable to suit your needs. The tractor can be equipped with up to eight remote valves that can be controlled via the EasyPilot joystick or the DSM display. The system allows the user to customise flow rates, operation modes and control settings. Three fingertip controls on the multifunction armrest enable the operator to control three remote valves, while a fingertip selector operates the flow divider. In addition, a mini-joystick can control up to six remotes that can be programmed via the DSM display to operate the front hitch, the front loader and the ISOBUS-compatible implements.

Automatic rear and front PTOs for top performance.

The rear PTO of the Serie 7 Robo-Six is designed to deliver high performance even with heavy, power-demanding implements. The driveline design provides modulated PTO engagement, protecting implements from damage. The rear PTO offers four speeds: 540, 540Eco, 1000 and 1000Eco rpm. External PTO, hitch and remote valve controls are located on the rear fenders, making attaching and detaching implements from the ground easier and faster. When the PTO is connected, the Dual Power system provides an additional 10 hp, allowing the engine to maintain a constant power as the load varies. The Auto PTO function will automatically engage and disengage the rear PTO during headland turns. The front PTO of the Serie 7 Robo-Six provides a speed of 1000Eco rpm.

Electronically controlled front and rear hitch systems.

The electronic rear hitch is equipped with a three-point linkage Category 3 and lower link draft sensing for maximum accuracy of operation and provides a lift capacity of 9300 kg. The EasyPilot joystick allows a precise and intuitive control of the implement. The electronically controlled front hitch is integrated into the tractor frame and offers a lift capacity of 3500 kg, allowing large, heavy implements to be handled with ease. The front hitch and front PTO can be used in combination with rear-mounted implements to save time, improve fuel economy and increase productivity.

More comfort with the hitch damping system.

During headland turns and transport operations, heavy implements generate shock loads. Both the front and rear hitch of the Serie 7 SWB feature a damping system with two nitrogen-charged accumulators which absorbs shock loads, thereby reducing pitching motions when travelling with raised implements. This system reduces the strain on the tractor’s structure, improving ride comfort.

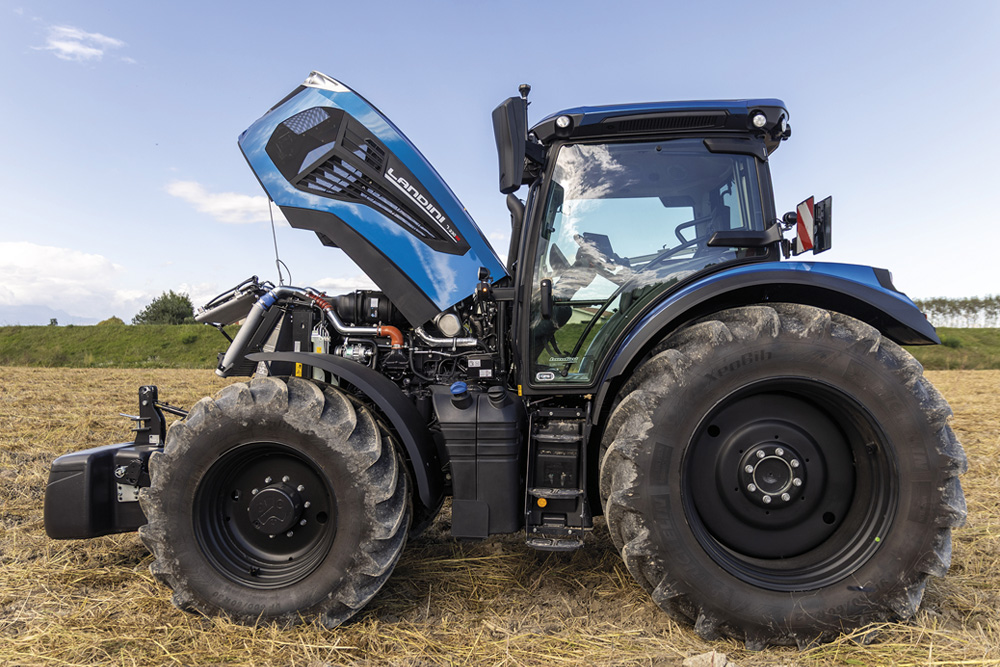

QUICK MAINTENANCE TO GET YOU UP AND RUNNING IN NO TIME.

Daily maintenance must be quick and intuitive, otherwise il will be neglected. The Serie 7 Robo-Six features a number of solutions designed to make maintenance fast and efficient:

• The fully opening bonnet allows quick, tool-free maintenance.
• Oil top-up can be done without opening the bonnet since the oil filler cap with dipstick is located in the lower part of the engine.
• The engine air filter is easy to clean and replace.
• The coolers located in front of the radiator open fully from a single latch to allow easy, fast and accurate cleaning.
• The HI-eSCR2 aftertreatment system is maintenance-free, which reduces operating costs and unplanned downtime.
• The fuel and AdBlue tanks have different coloured caps and are conveniently located for easy refuelling.
• The oil level in the transmission is easy to check through the transparent oil filler cap with level gauge located on the rear of the tractor.
• The Automatic Grease System automatically delivers oil to all lubrication points, resulting in significant time savings.
• The cab air filter is conveniently located to allow quick maintenance.
• The windscreen wiper fluid reservoir is located on the rear of the cab.
• Maintenance intervals have been doubled from 500 to 1000 hours.
• The My Landini App will alert you about the checks and spare parts needed to always keep your Serie 7 Robo-Six in good working order.
