REX3

A CHAMPION OF COMPACTNESS.

The REX3 is a professional tractor with power ratings up to 75 hp specially designed for use in orchards, vineyards, olive groves, hazel groves and overhead trellis systems. Extremely compact, easy to handle and powerful, the REX3 is equally at home in municipal applications. The new REX3 offers substantial improvements in terms of compact design, configuration flexibility, manoeuverability, ease of use and com fort. A variety of unique features allow the operator to operate the trac tor with maximum ease and comfort. A low-profile cab and a minimum bonnet height of only 1256 mm from ground, the lowest in its class, allow maximum visibility to the rear and front, while providing easy access to height-restricted areas. In addition, the tractor’s tight turn ing radius makes headland turns easier and quicker, thereby reducing working time and fuel consumption while improving operator comfort.

Engine Cyl / L: 4 / 2.5

Power HP: 75

Transmission: Speed Four

Request Information

F Version

For vineyards and tight orchards rows.
GE version

For orchards, low vineyards, greenhouses, tunnel crops, and overhead trellis systems.

Strong points of the REX3 F-GE.

Driving position
Engine
Transmission
Hydraulics

Request a Quote

Download the Brochure

LOW-PROFILE MONOCOQUE CAB: SAFE ACCESS TO HEIGHT RESTRICTED AREAS.

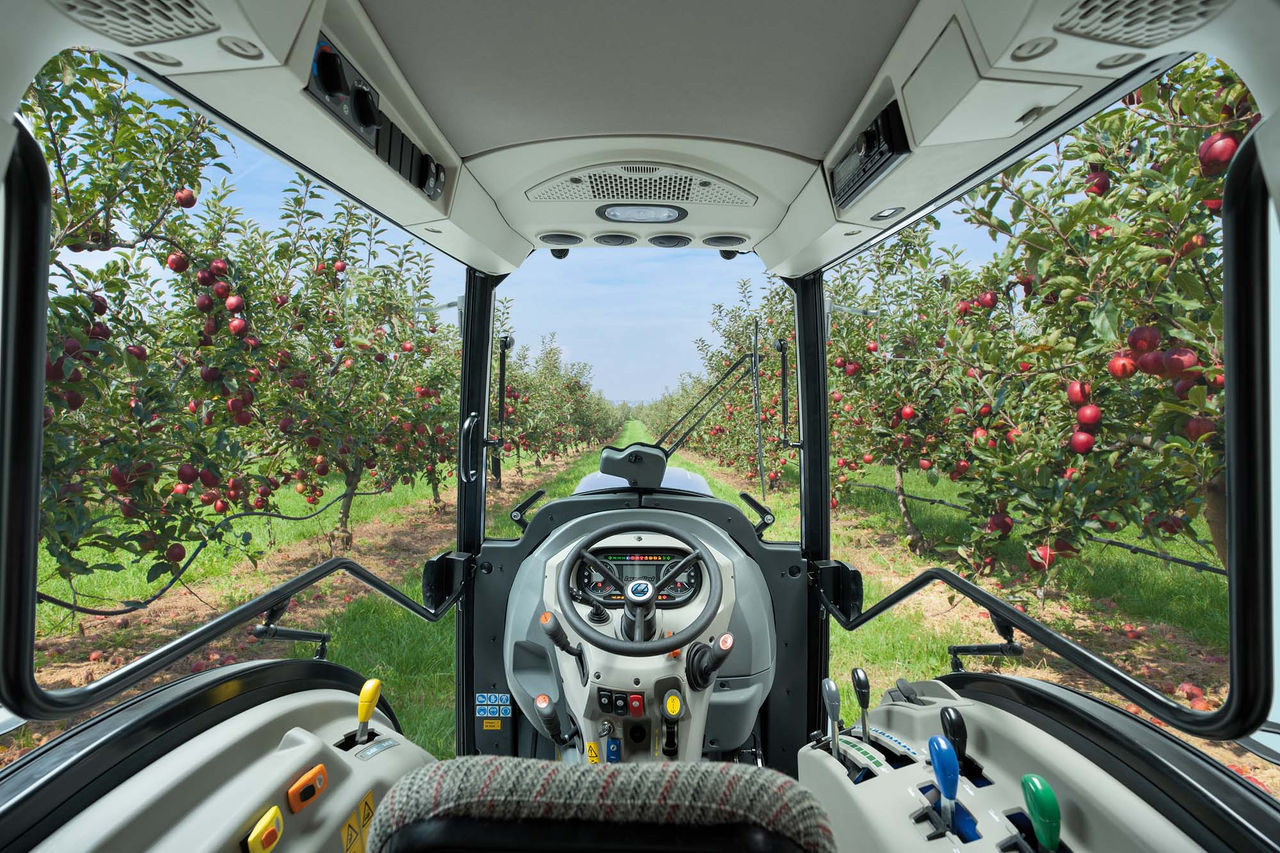

The innovative low-profile cab fitted on the REX3 is designed by Argo Tractors and directly installed at Landini. The cab is a mono coque safety cell which allows the ROPS to be removed, thereby improving visibility both to the front and to the sides of the vehicle. The cab of the REX3 features a large glazed area with a curved front windscreen that provides easy access to height-restricted areas. The rear window opens wide allowing the operator to check on the implement during work. The cab roof has a tapered shape and a maximum width of only 860 mm. With an overall height of just 1875 mm, the REX3 works easily between crop rows ori ented perpendicular to the slope direction. Wide-opening doors provide easy access to the driving position. All tractor controls are ergonomically arranged for maximum comfort and designed for intuitive operation. The driver’s seat is comfortable and the adjust able steering wheel features an engine speed memory button that speeds up headland turns. The low-profile monocoque cab of the REX3 is perfectly sound proofed and comes standard with an efficient air conditioning sys tem which maintains a comfortable working environment what ever the outdoor weather conditions. The cab filters are fitted onto the rear posts allowing quick removal for easy cleaning.

KOHLER ENGINE.

The Rex3 line-up includes one model with the 4-cylinder, 16-valve, 2.5-litre Kohler engines 75 hp, with torque reserves of 32%. Maintaining the considerable compactness of Kohler systems, the new engines are equipped with DOC systems without regeneration, therefore without affecting the productivity and efficiency of the machine in any way. Engine RPM management is provided by the Engine Memo Switch that allows you to store and quickly recall settings when passing from one activity to another. Full operational autonomy throughout the day is ensured by the 50-litre diesel tank.

SPEED FOUR, THE RUGGED TRANSMISSION THAT SUITS EVERY NEED.

The REX3 tractors are equipped with a Speed Four transmission entirely designed and constructed at Landini factory, which meets the highest standards of quality, ruggedness and efficiency. The Speed Four transmission is designed to minimise power absorption so that all the power is used for the task at hand. This reduces power waste while increasing efficiency and productivity. The Speed Four transmission offers four synchonised gears and up to four ranges allowing a maximum speed of 40 km/h. The trans mission can be optionally equipped with a creeper that provides 16 forward and 16 reverse gears with speeds as low as 0.4 km/h at maximum engine rpm. The Speed Four transmission features a steering-column synchro shuttle that allows the operator to simply and quickly shift from forward to reverse without taking their eyes off the road.

A VERSATILE HYDRAULIC SYSTEM TO SUIT YOUR NEEDS.

The hydraulic system of the REX3 is designed to offer the versatility and flexibility required to meet the specific needs of orchards, vineyards and overhead trellis systems. The hydraulic system comes standard with a dual pump that supplies 50 l/min to the rear hitch and to the remotes and 30 l/min to the steering system. The tractor can be equipped with up to three rear remote valves: two standard and one with float function. One valve has double outlets to allow the use of mid-mount couplers (optional) for connecting front- or mid-mounted implements, such as toppers or leaf strippers. Optionally, the hydraulic system can be equipped with a push-pull quick-release coupling for free flow oil return.
